P27F500 Gearshift Selector Fault: What It Is and How to Fix It Yourself
If you own a Volkswagen Golf 8, Audi A3, SEAT Leon, or Skoda Octavia with a DSG automatic gearbox, you may have been greeted one morning by a warning message reading “Gearshift Selector Fault.” It can appear on the instrument cluster, the infotainment display, or both, without any obvious cause.
The associated fault code is P27F500. It’s a well-documented, fairly common issue on the MQB Evo platform, and it’s fixable at home with a handful of basic tools and no replacement parts.
What Does P27F500 Mean?
P27F500 points to a fault in the magnetic solenoid of the gear selector lever, the electrical component that reads the selector position (P, R, N, D) and relays it to the gearbox control unit.
The warning typically appears:
- At cold start, especially on the first startup of the day
- Intermittently, with the gearbox otherwise behaving normally
The DSG gearbox usually continues to operate without any driving issues, but the warning light persists and may trigger the engine management light, which can cause the vehicle to fail an emissions inspection.
Root Cause: Intermittent Pin Contact on the Solenoid Connector
The fault isn’t caused by mechanical wear or a serious electrical failure. It’s simpler than that: the metal pins on the solenoid’s connector relax over time and lose reliable contact, particularly after repeated heating and cooling cycles in the transmission tunnel.
This produces an unstable electrical signal that the control unit interprets as an anomaly, logging P27F500.
What You’ll Need
No specialist tools are required:
- Plastic trim removal levers / pry tools (Leroy Merlin / Amazon)
- One or two flat-head screwdrivers (medium size)
- Hooks / pick tools (optional but helpful for extracting the solenoid cleanly, Amazon)
- 30–45 minutes of your time
- An OBD2 scanner to clear the fault code afterwards (or disconnect the battery for a few minutes)
Step-by-Step Repair

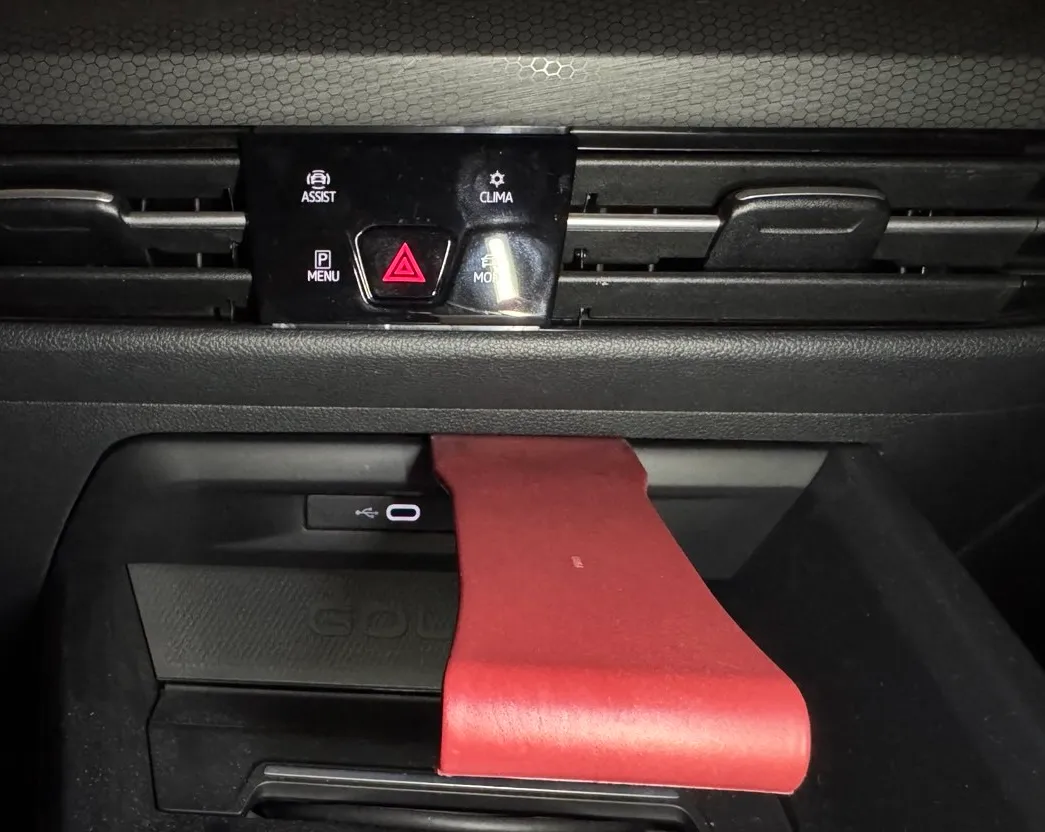

Step 1: Remove the USB Module
Pry the USB module out of the centre console with a plastic trim tool, working from the front edge so you don’t crack the surround. It just clips in, with no screws, and once it’s loose, disconnect the cable behind it.

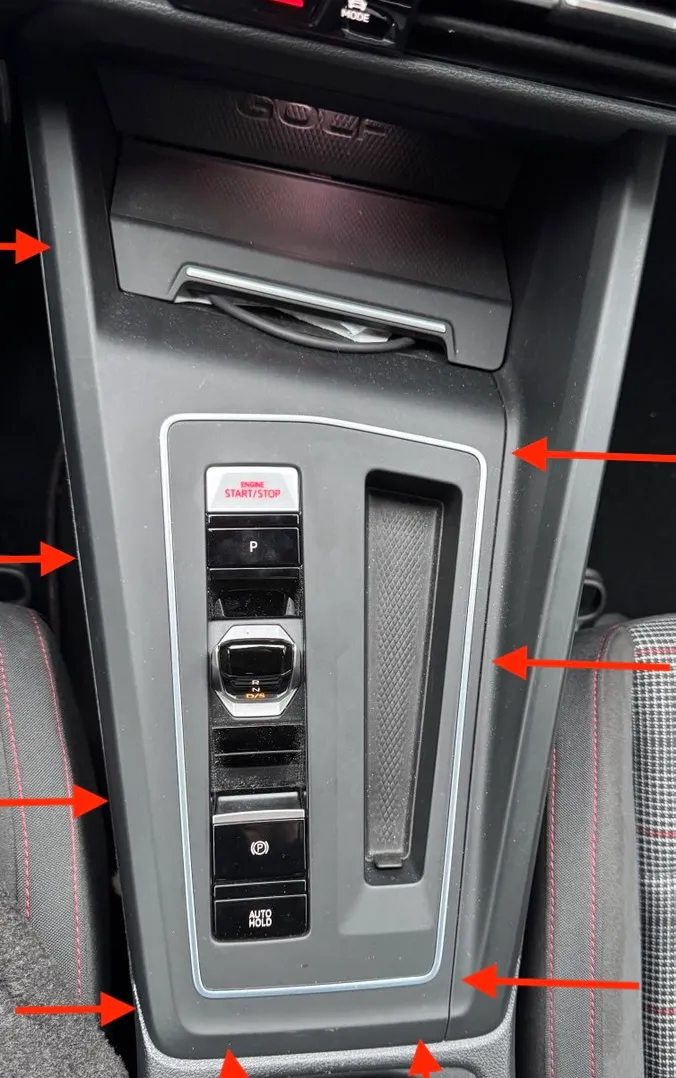

Step 2: Remove the Centre Console Panel and Foam Padding

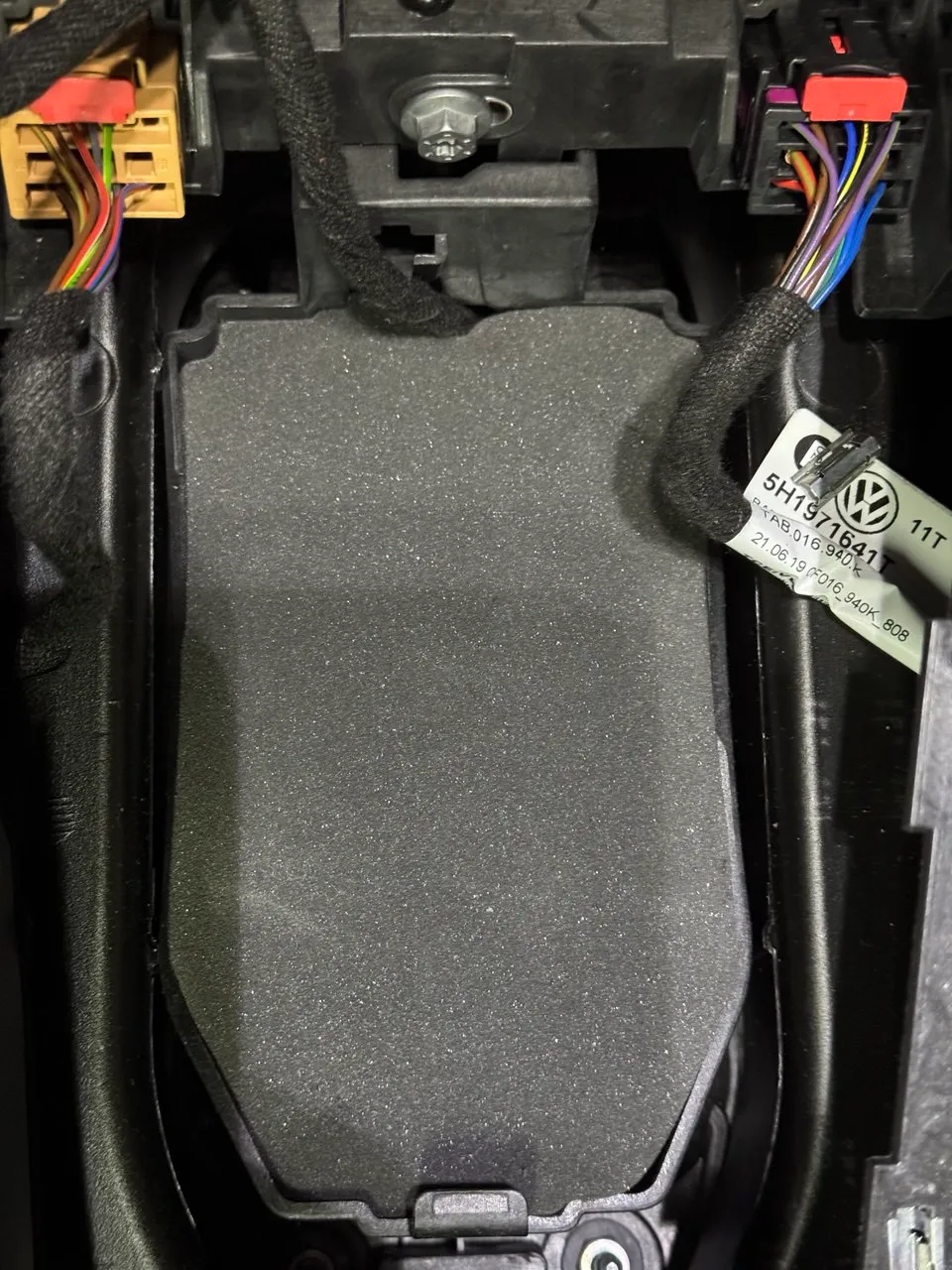

With the USB module out of the way, work around the perimeter of the upper console panel with the pry tools, releasing each clip before moving to the next. Once the panel is off, lift out the foam padding underneath to expose the solenoid.

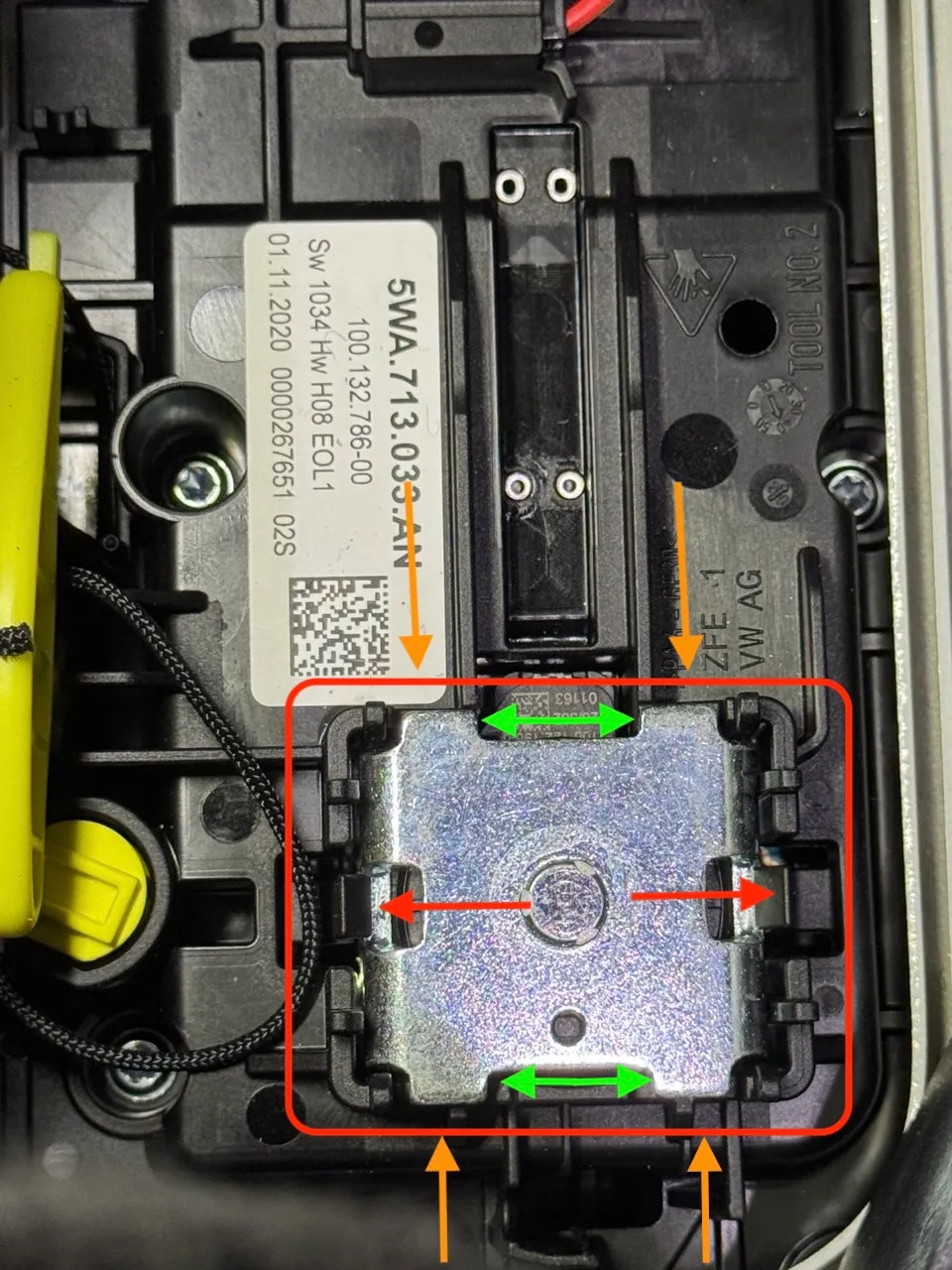

Step 3: Extract the Solenoid
To remove the solenoid:
- Push the plastic retaining tabs outward. These are the clips holding it in its housing, and they need to be spread away from the body
- Use a flat-head screwdriver as a lever to raise the solenoid body upward
- If you have pick or hook tools, use the dedicated slots on the sides of the solenoid instead. It’s a cleaner extraction with less risk of scratching the surrounding plastic

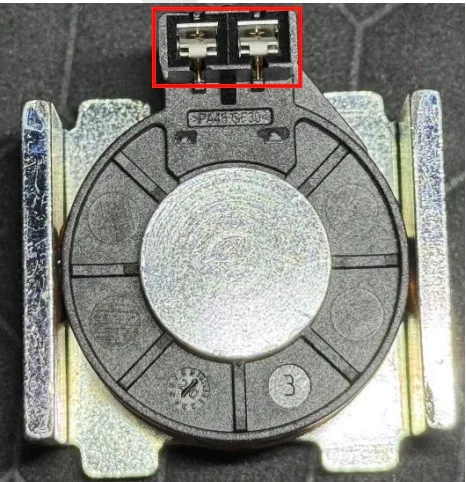

Step 4: Bend the Pins
With the solenoid out, look at the metal pins on the connector: over time they flatten and lose the spring tension that keeps contact reliable when plugged back in.

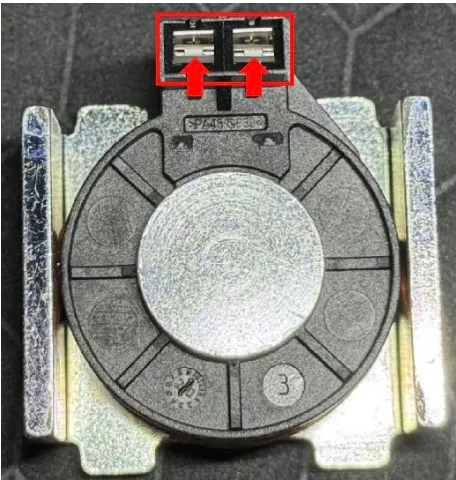

Bend each pin slightly outward, one at a time, to increase contact pressure once the connector is reseated. You’re aiming for a bit more tension, not deforming the pins beyond recovery.
Step 5: Reassemble
Reassemble in reverse order: solenoid, then foam padding, then centre console panel, then USB module. Make sure every clip is fully seated before moving on.
Once it’s back together, clear the P27F500 fault code with an OBD2 scanner, or disconnect and reconnect the battery for a few minutes. Start the car and check the warning doesn’t come back.
Expected Outcome
I did this fix on my own Golf 8 GTI back in 2023, and the code hasn’t come back since, through plenty of cold starts and normal driving.
If P27F500 does come back after bending the pins, the solenoid itself is probably damaged and needs replacing. In the reports I’ve seen from others who’ve tried this, that’s rare.
Sources & Further Reading
I first came across this fix in two Arabic-language videos covering the Golf 8/Leon selector problem:
Since then the fix has been covered in several other languages:
It’s also documented in writing:
Applied this fix yourself? Drop me a message. I’m happy to update the post with community feedback.
